HOW TO START
A WATER BOTTLING PLANT?

Due to the increasingly serious pollution of water sources and the aging of urban water supply pipes, the quality of drinking water is seriously affected. With the general improvement of people’s living standard, more and more people begin to pay attention to drinking water health. So investing in a water plant is a good project.

WELL, HOW TO START A WATER BOTTLING PLANT (LET'S TAKE CHINA FOR EXAMPLE)

Container Volume Capacity
Glass Bottle
250-1500ML
2000-12000BPH
PET Bottle
3-10L
400-2000BPH
PET Bottle
250-2000ML
2000-30000BPH
Barrel
3-5Gallon
100-1500BPH

FIGURE OUT WHAT LICENSES
ARE NEEDED

Normally we will need proceed Production License, QS Certification,
Hygiene License and Health Certificate of Employees.

Production License

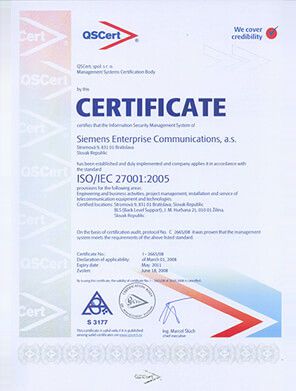

QS Certification

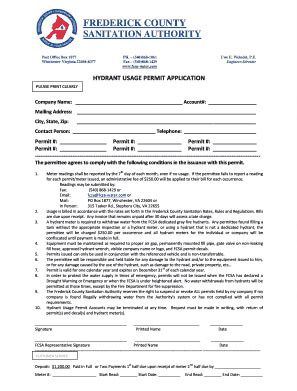

Sanitation Permit
Practitioner's Health Certificate

BASIS FOR CONSTRUCTION
OF WATER PLANT

bj20210729Img5
Never build a factory far away from the water source, and the nearest distance between the plant and the water source is the best solution.

According to A

According to B

bj20210729Img6
Consideration should be given to the presence of nearby sources of pollution, the availability of fresh air, and the availability of off-site drainage channels.
bj20210729Img7

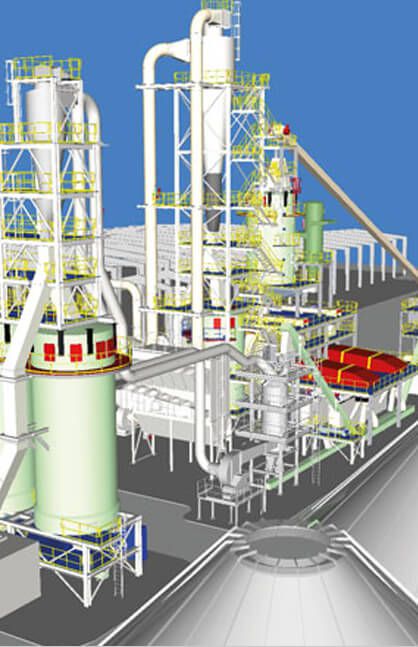

Factory working house generally need to be 20-50 meters long, 8-12 meters wide. In this range for different applications, such as: bottle blowing room, water treatment room, filling room, packaging room, finished products room and consumable room (preform, cap, label, pe film). The washing filling and capping unit can be specially made into closed workshop.

According to C

According to D

bj20210729Img8
Laboratory equipment: microscope, ultra clean table, turbidimeter, acidity meter, analysis balance, regular test of raw water quality and clean water quality.

SCHEMATIC PLAN VIEW

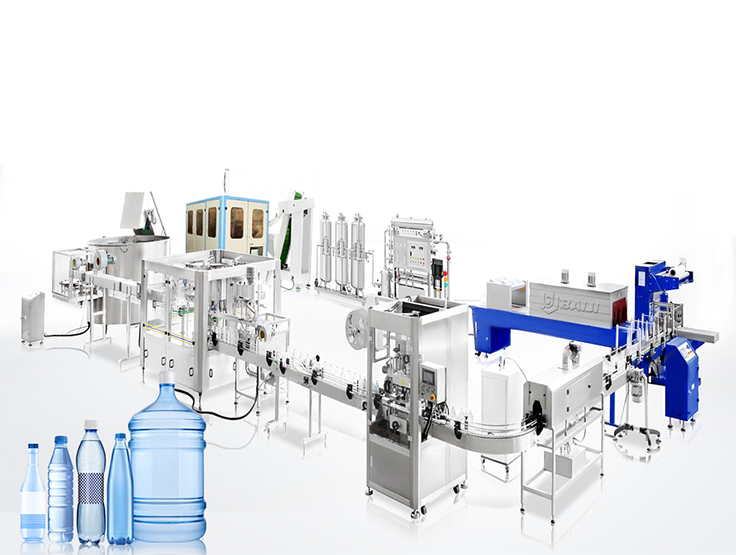

Baiji Machinery Limited can provide you with turnkey solution for complete bottled water filling production line.
We will also send professional engineer to your factory for installation, commissioning and teach your workers how to use our machines.

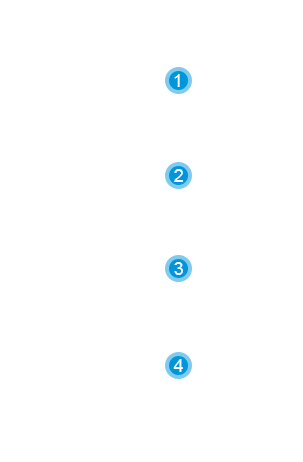

Here we will list the important components as following:

EQUIPMENT NEEDED FOR WATER PLANT

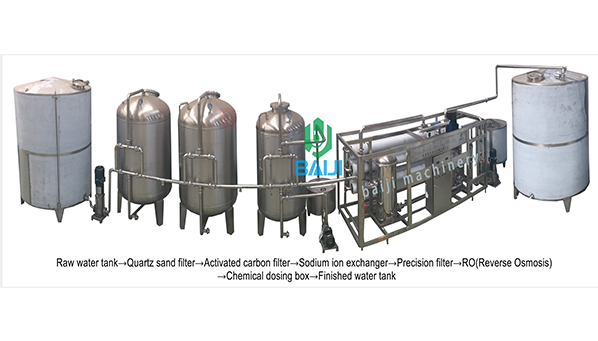

Water purified machine

The production of pure water, the source water can be selected groundwater, tap water, lake water. We can get the water quality report according to the water sample test, so as to configure the corresponding water treatment equipment.
Then we choose the single or two stage reverse osmosis system according to the conductivity of water quality. Normally the water treatment machine mainly including the following equipment: original water tank, water pump, quartz sand filter, activated carbon filter, ion softener, precision filter, RO reverse osmosis, ozone generator and pure water tank. Sure, if we wanna produce mineral water, we will need use hollow ultrafiltration system to instead of RO system.

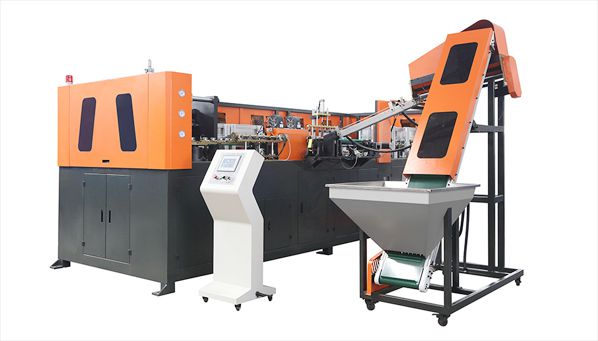

PET water bottle blow molding machine

Blowing system mainly includes automatic blowing machine, mold, high and low pressure air pressure system, high and low pressure cold drying system, high and low pressure gas storage tank, oil and water separator, water chiller, etc.

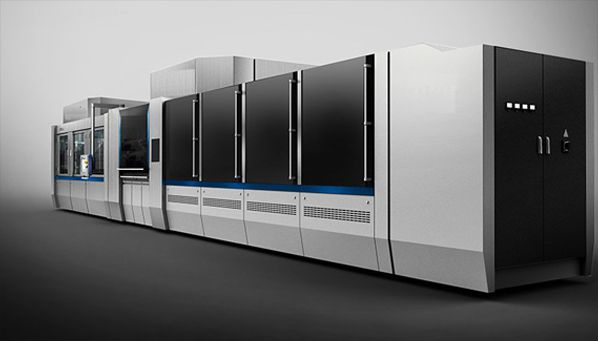

3in1 Small bottled water washing filling capping machine

Working speed: 2000-30000bph(bottles per hour)
Bottle shape: Round or square bottle or any shape
Bottle size: 200ml-2000ml
Filling Liquid: Mineral Water, Pure Water, Spring Water, Drinking Water and others Non-Carbonated Drinks

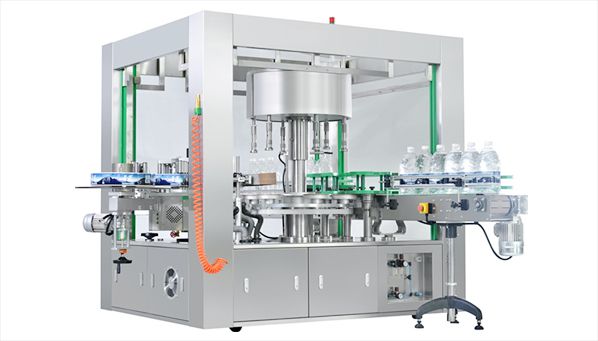

Labeling machine

At present, the mainstream products are shrink sleeve labeling machine, hot melt adhesive labeling machine and adhesive labeling machine.
The label of hot melt glue is the cheapest, but the price of the machine is also the most expensive. It is most suitable for high speed filling production buyers.

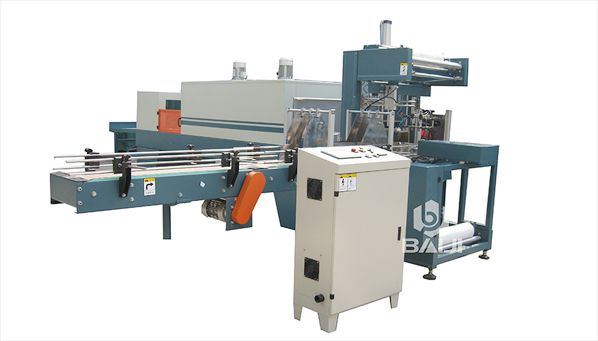

Packing machine

Packing machine we can provide with film shrink wrapping machine or carton packing machine. And we will provide palletizer for finished film packaged or carton packaged products too.

PROFITABILITY ANALYSIS (I.E. 550ML BOTTLE, 24BOTTLES/PKG)

Bottle preform: 0.011CNY/gram*16gram=0.176 CNY, 1PKG is 4.224 CNY
Cap: 0.08 CNY per pcs, 1PKG is 1.92 CNY
Label: around 0.023 per pcs, 1PKG is 0.552 CNY
Labor cost: 0.6 CNY per PKG
Electric cost: 0.4 CNY per PKG
Packing film cost: 0.7 CNY per PKG

So 1 PKG(24 bottled) water cost is around 8.3992 CNY, and 1 bottle water cost is 0.35CNY.

IF YOU CAN GIVE US THE ORDER, WE WILL PROVIDE A TO Z TURNKEY PROJECT TO YOU, AND HELP YOU TO DO ACCURATE COST AND PROFIT ANALYSIS !
