COMPLETE JUICE PRODUCTION LINE
JUICE PRODUCTION LINE
TOTAL SOLUTION
FLOOR PLAN
Product Features
The machine is controlled by man-machine interface touch screen, PLC computer program control, frequency converter control.
For the different juice characteristics, we can provide different sterilizer before filling. Such as UHT sterilizer, pipe type sterilizer and plate type sterilizer.
The juice blending system and sterilizing system will need heat to support working. So the boiler is essential to save the cost.

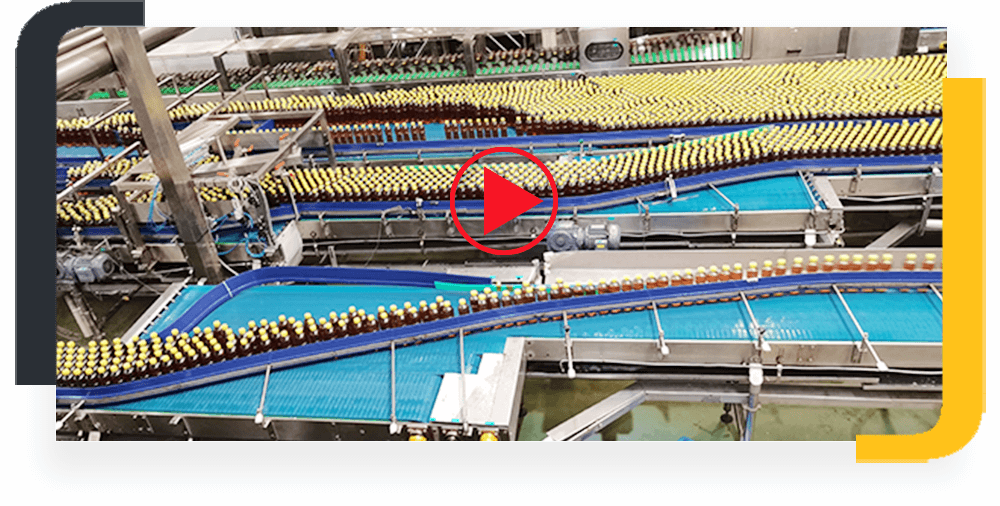

The pressure-free conveying system can realize the bottle on the conveyor belt do not appear the phenomenon of squeezing each other.
You May Also Want To Know
Water Treatment System
raw water tank → raw water pump →quartz sand filter → active carbon filter → sodium ion exchanger → precision filter → RO (Reverse Osmosis) → finished water tank

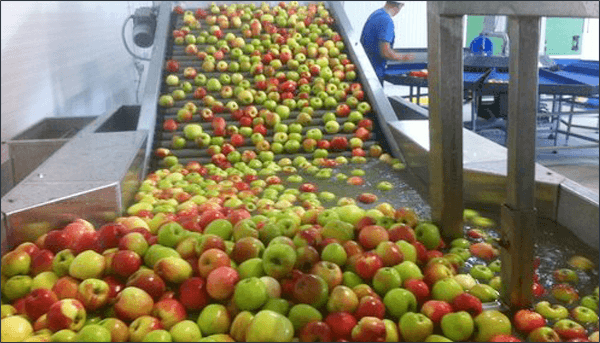

Fruit Washing Machchine
Advanced water treatment technology.
Washing water can be recycled, can
save 80% of the washing water.
Stainless steel making machine
Fruit extractor
It is suitable for the separation of various fresh fruits and vegetables
All machine is made of stainless steel. It is the ideal machine for making jam, fruit juice and vegetable juice.
The working principle is that when the material is pushed by the screw, the volume of the screw cavity is reduced to form the squeezing of the material.
Fruit Washing Extracting Machine
It is specially used for filling 1 gallon to 5 gallon bottled water.
It is specially used for filling 1 gallon to 5 gallon bottled water.
It is specially used for filling 1 gallon to 5 gallon bottled water.

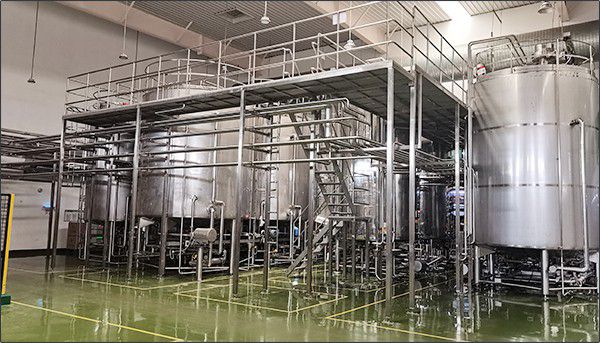

Juice drink blending system
The blending system includes sugar-melting pot, blending tank, double filter, vacuum degassing machine, homogenizer, uht sterilizer, storage tank and CIP online cleaning system.
It is mainly used for the preparation of fruit juice and sterilization, and for the preparation of fruit juice or mixed drinks before filling.
The output ranges from 1 to 100 tons for customers to choose.

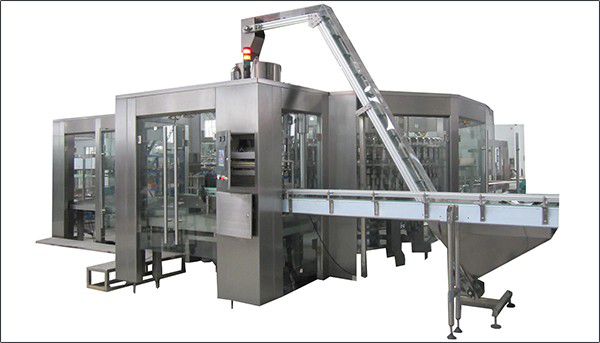

PET bottle juice drink filling machine
Juice drinks generally use hot micro-negative pressure filling method.
The bottle has a certain high temperature resistance requirements, must withstand 85 degrees of filling without deformation, suggest to use high temperature blowing machine.
The fruit juice filling machinery integrates the washing, hot filling and capping.

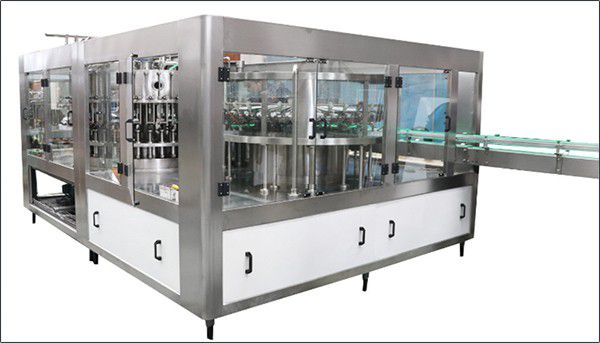

Glass Bottle Juice Drink Filling Machine
Equipped with automatic circulation system, easy to low temperature material circulation heating and CIP cycle cleaning.
Adopt screw transport the bottle, ensure the stability of the bottle feeding, 180° turn rinsing and dry, ensure the full cleanliness of the bottle.

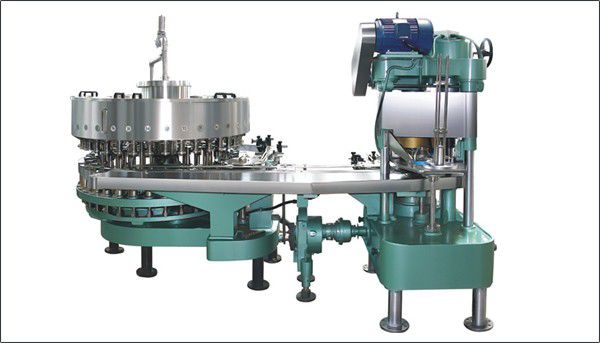

Can Juice Filling Machine
Adopt the backflow filling mode, high precision, high speed filling valve, the liquid level is accurate without liquid loss.
The connection between the filling system and the sealing system is stable, and the material in the bottle has no external splash.

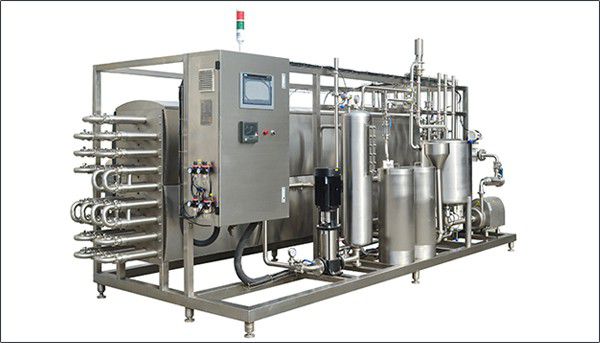

Pipe type sterilizer
Mostly used for products with granules or high viscosity beverage, products containing fiber and larger pulp granules, products of high acidity and products corrosive to the dead angle.
It can be sterilized at high temperature and ultra-high temperature of 120-140 degrees.

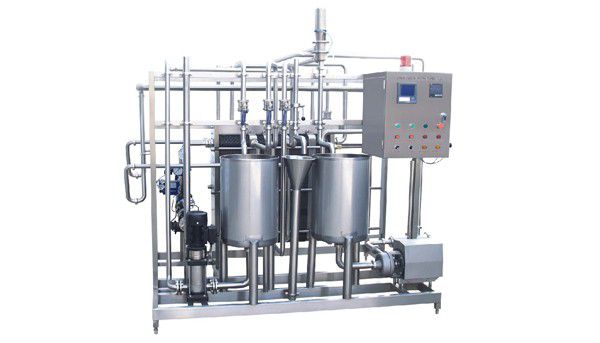

Plate type sterilizer
Applicable to heating, sterilization, heat preservation and cooling etc. Requirements of fruit juice beverage.
Capacity from 0.5 to 50T/H. Sterilizing temperature from 85C to 95C. Heat preservation period is 15 to 3os.
PRODUCT PARAMETER
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF60-60-15 | CGF72-72-18 | CGF80-80-18 |
|---|---|---|---|---|---|---|---|---|---|
|
Rinsing heads |
16 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
80 |
|
Filling heads |
12 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
80 |
|
Capping heads |
6 |
6 |
8 |
10 |
12 |
15 |
15 |
18 |
18 |
|
Capacity
(BPH) |
4000 |
6000 |
10000 |
12000 |
18000 |
22000 |
25000 |
28000 |
35000 |
|
Motor power(KW) |
2.2 |
3.5 |
4.5 |
6.0 |
7.5 |
9.5 |
11.2 |
15.0 |
18.0 |
|
Dimensions |
2400×1650 ×2500 |
2600×1920 ×2250 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
6000×4800 ×2850 |
6500×5000 ×2850 |
|
Weight(KG) |
2500 |
3500 |
4500 |
5600 |
8500 |
9800 |
12800 |
15000 |
18000 |
